• Input: Massimo 9 canali;
• Supporto audio (bidirezionale);
• Uscita HD: 4K (3840x2160);
• Compressione video: H.265/H.264/H.265+/H.264+

SPECIFICATION

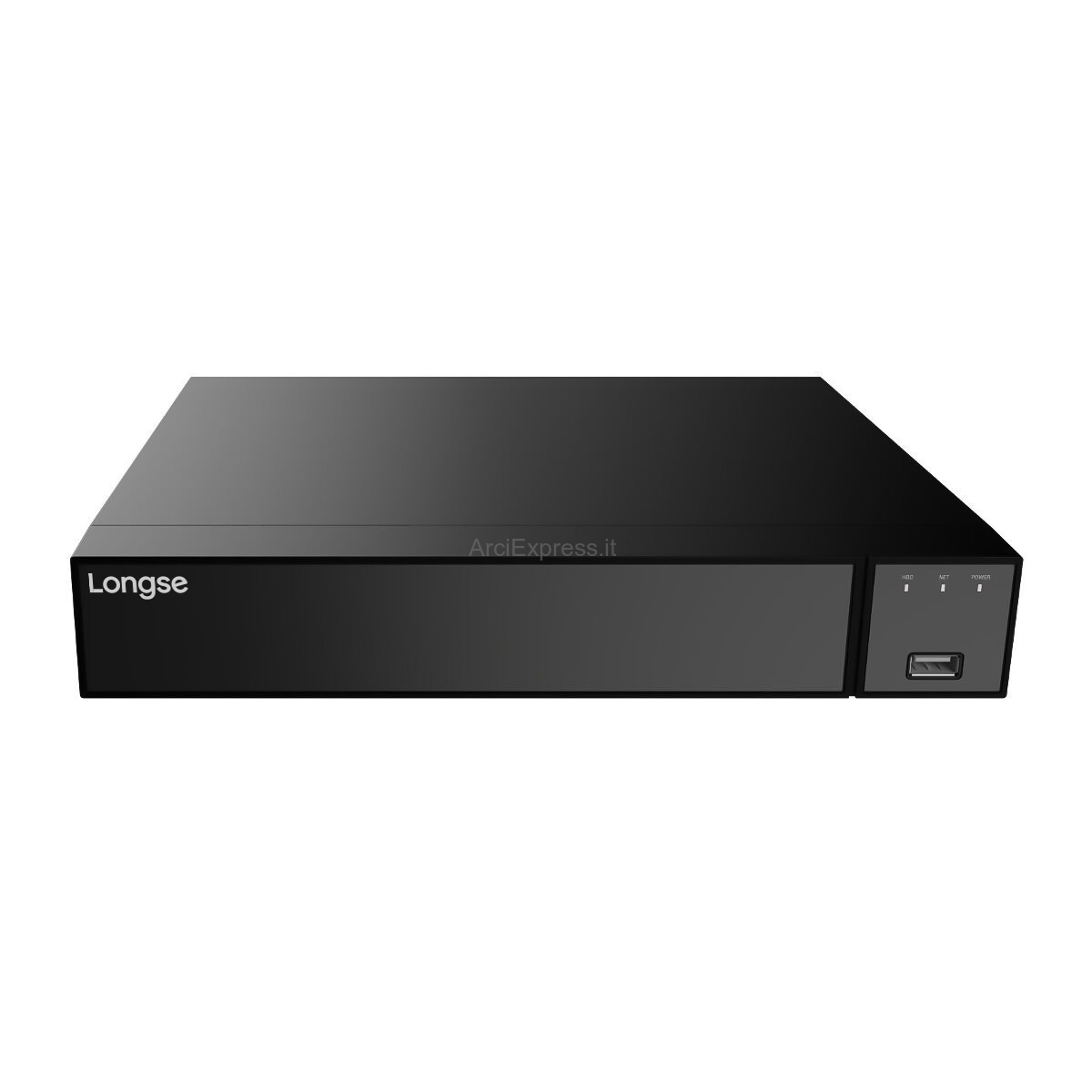

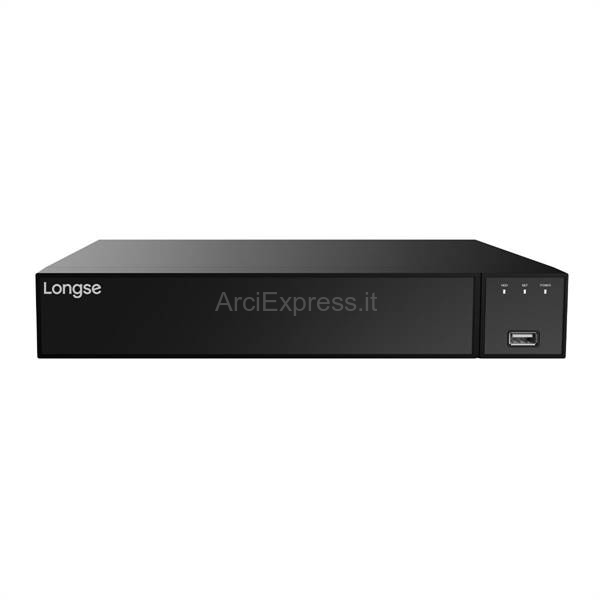

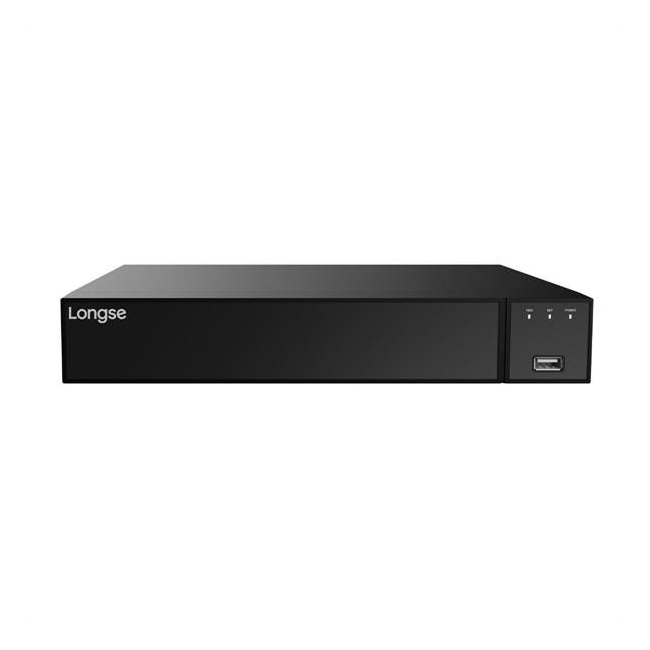

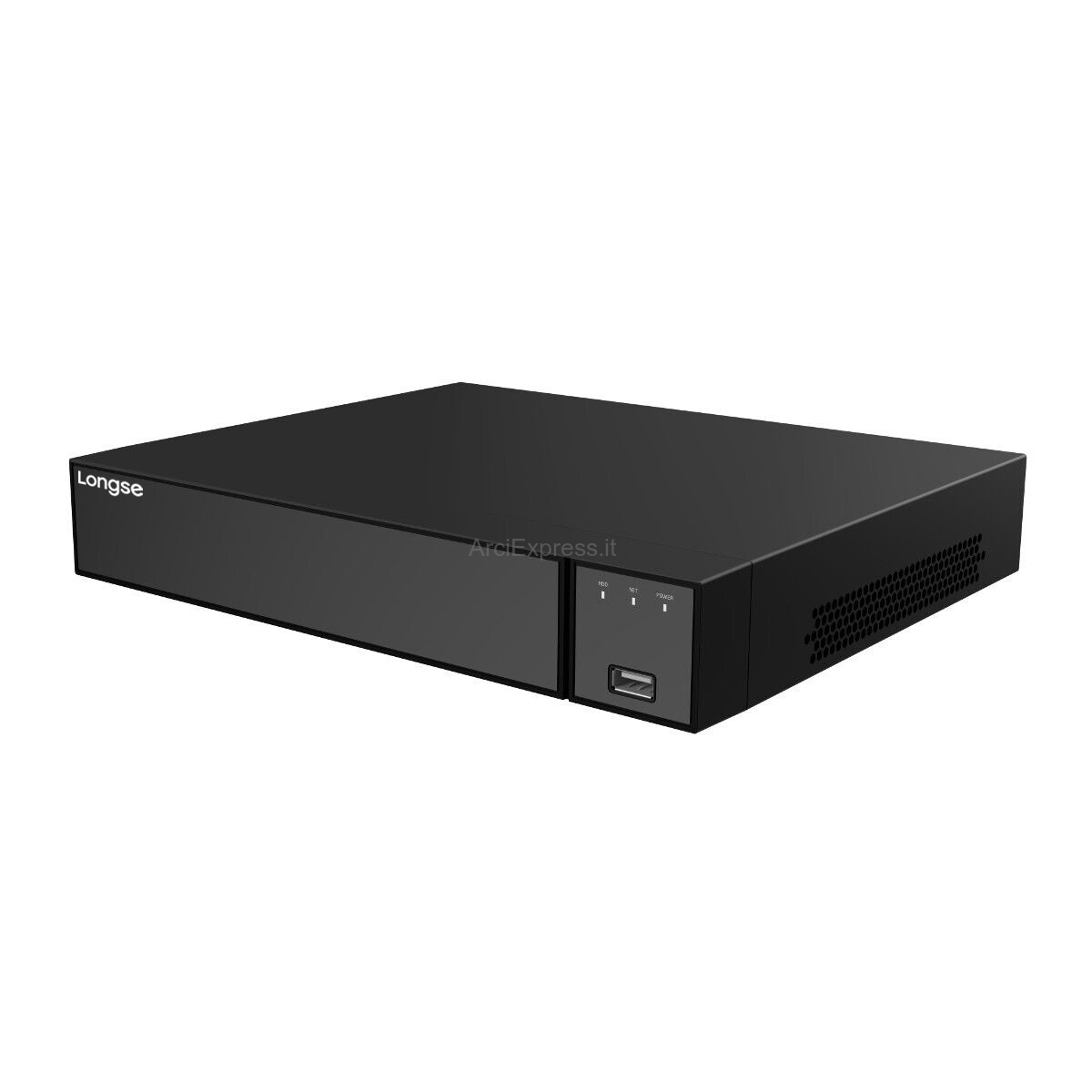

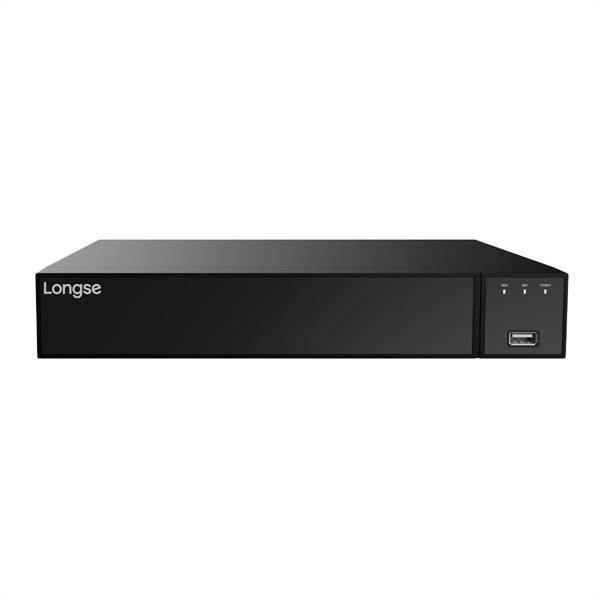

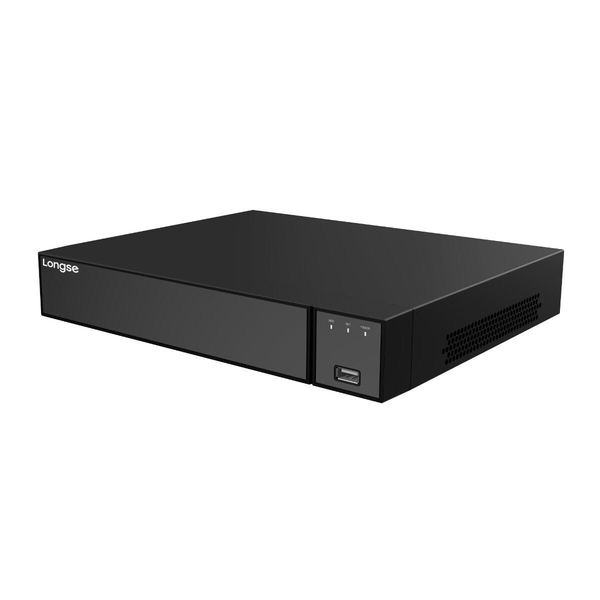

Model NO. NVR3009C
Main Processor ARM Cortex A7 Processor
Operating System Embedded LINUX
Input 9CH(3840*2160,2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc)
Output 1 VGA, 1 HD
Input 1 Port RCA
Output 1 Port RCA(Linear, 1kΩ)
Audio Bit Rate 64kbps
Audio Compression standard G711u, G711a, ADPCM_DVI4
Intercom support (two-way)
Sensor Input N/A
Output N/A
Motion Detection 9 Channel, MD Zones: 396 (22 × 18)
Trigger Events Recording, Email, FTP, Snapshot, Buzzer and Screen Tips
HD Output1 4K(3840*2160)/2K(2560*1440)/1920*1080/1280*1024/1280*720/1024*768
HD Output2 N/A
VGA Resolution:1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Display Split 9CH/8CH/6CH/4CH/1CH
Digital Zoom YES
OSD Camera Title, Time, Recording, MoBon DetecBon, Event Alarm
Video Compression H265/H264/H265+/H264+
Resolution 4k(3840×2160),5MP(2592×1944),4MP(2688×1520/2560×1440),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)
Record Rate PAL :4K@8CHx25fps,5MP@9CH×25fps,4MP@9CHx25fps,3MP@9CH×25fps,1080P@9CH×25fps, 960P@9CH×25fps720P@9CH×25fps, D1@9CH×25fps
NTSC: 4K@8CHx30fps,5MP@9CH×30fps,4MP@9CH×30fps,3MP@9CH×30fps,1080P@9CH×30fps, 960P@9CH×30fps, 720P@9CH×30fps, D1@9CH×30fps
Record Mode Manual\Timer\Motion Detection\Smart Event
Local Sync Playback 1CH 4K@30fps, 1CH 5MP@30fps,2CH 4MP@30fps, 2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps,9CH D1@30fps
Decode Capability 4CH 1080P(1920x1080)@30fps
Remote Sync Playback YES
Search Mode ALL, Timing Video, Motion Detection, Tag search,Smart Event,Pictrue,Log
Playback Functions Play, pause, fast forward, rewind, previous frame, next frame, electronic zoom, clip, audio
Backup Mode USB Device/Network
Interface 1 x RJ45 (10M/100M Adaptive Ethernet Interface)
Incoming Bandwidth 80Mbps
Outgoing Bandwidth 80Mbps
Network Functions IPv6/TCP/IP, HTTP,HTTPS, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, p2p,PPPOE
Onvif Profile S, Profile G, Profile T
Web Browser Edge,IE8-11, Google Chrome , Firefox ,Safari
CMS Software Support Windows 7/ Windows 8/Windows 10/Windows 11/MAC OS
Cloud Support Yes
Smart Phone iPhone, iPad, Android, Android Pad
POE N/A
WIFI N/A
Interface Type 1 SATA Hard Disk Interface (3.5" SATA)
Capacity Up to 8TB capacity
eSATA N/A
Language UI Simplified Chinese, Traditional Chinese,English, Russian,Deutsch, French, Portuguese, Spanish, Italian, Korean, Janpanese，Ukrainian, Polski,Dutch, Greek,
Czech, Arabic
USB Interface 2 USB 2.0 Interfaces
RS485 N/A
Power consumption DC12V 2A ≤20W (Without Hard Disk)
Working Environment -10~55℃/10~90%
Product Dimension(W×D×H) 260*215*43(mm)
Net Weight 0.85kg(without HDD)
Gross Weight 1.32kg(without HDD)
